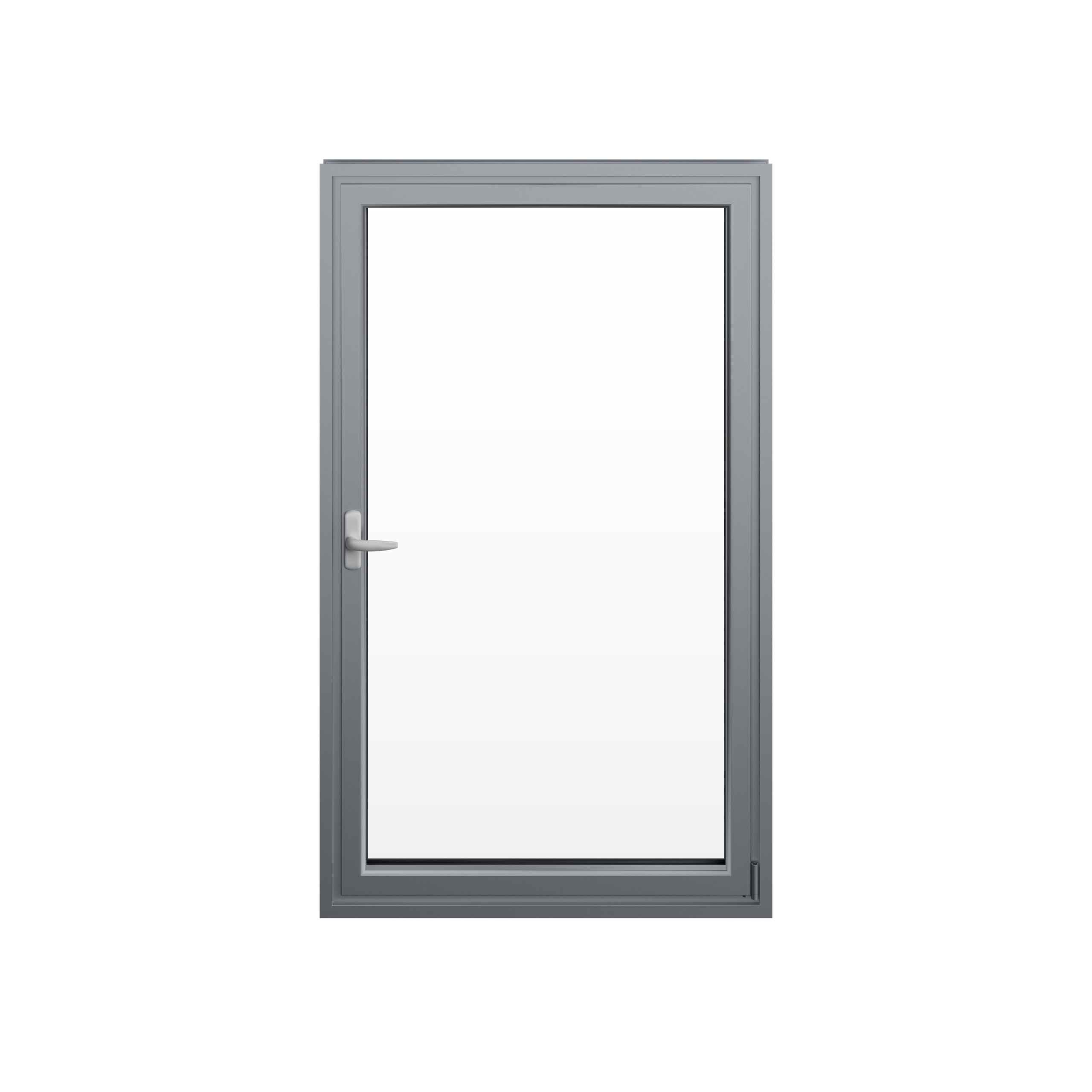

Series 9000A Aluminum Thermal-Break Dual-Action (Tilt & Turn) Windows

Tested and awarded the highest rating possible (AW) by the American Architectural Manufacturers Association, our Series 9000A Aluminum Thermal-Break Dual-Action (Tilt & Turn) Window is a superior window product. This product line is a prime example of performance meeting beauty, offering a wide range of benefits: easy cleaning and ventilation, superior structural performance, and an advanced thermal barrier to reduce load on heating and cooling systems. What’s more, the distinct exterior profile, European-design hardware, and unmatched versatility of custom color capabilities come together to enhance even the most sophisticated and cutting-edge designs.

Product Details

  • Frame Depth: 3-1/4”

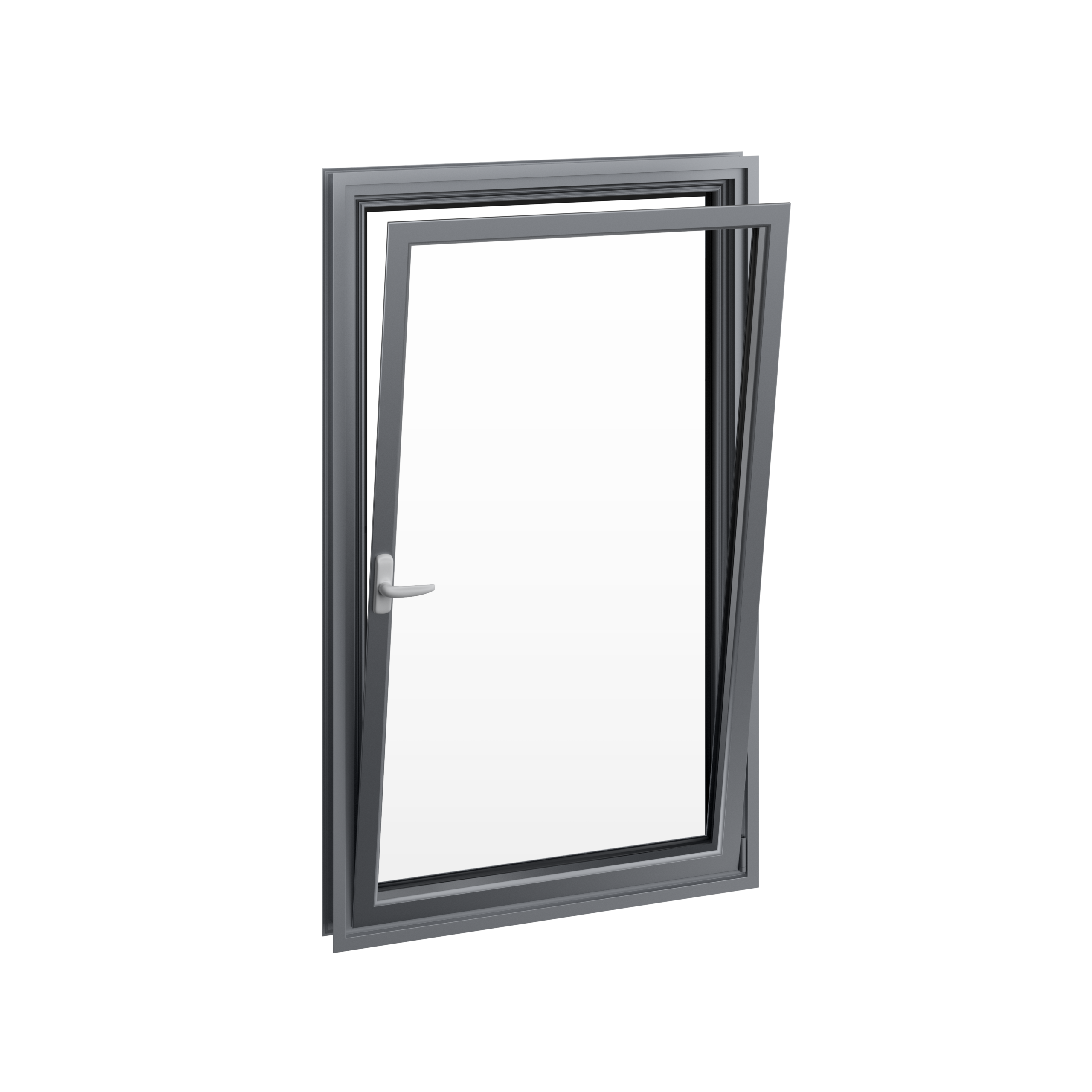

  • Dual-Action (Tilt & Turn)
  • AAMA Rating: AW-PG70* (*rating is pending)
  • 1+1/4″ Overall IGU – Enhanced insulation & sound reduction.
  • European-Style Frame and Sash
  • Heavy Duty Extrusion
  • Triple Gasket Seal
  • Polyamide Thermal Barrier
  • Zero Sightline Sash
  • Butt-Type Hinge
  • Pressure-Equalized Design
  • Lever Handle on Interior Sash
  • AAMA 2604 Powder Coat Finish – The durable finish that’s also environmentally – friendly.

Product Options

  • Low-E Coating & Argon – Enhances energy efficiency.
  • Between-the-Glass or Exterior Applied Grids
  • Custom Finish and Custom Color Capability
  • Full Screen
  • Limit Devices
  • Handle with Key Lock
  • Custom Accessories Available
  • Glazing options are available to meet many state and local municipality energy codes, call a Crystal representative to confirm the glazing type required
